BMAC-E

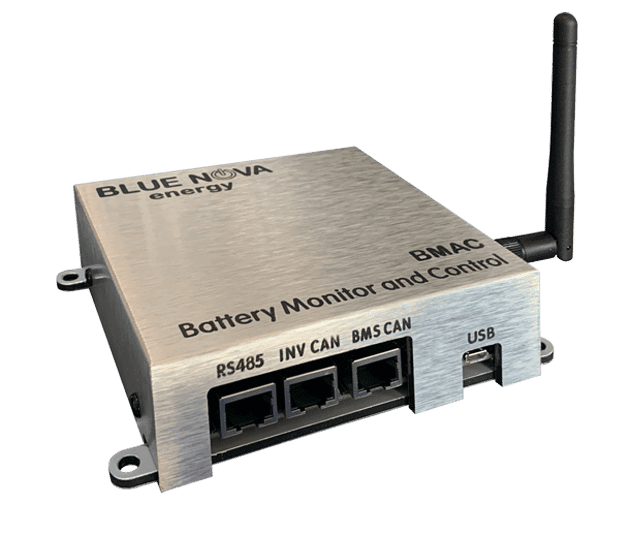

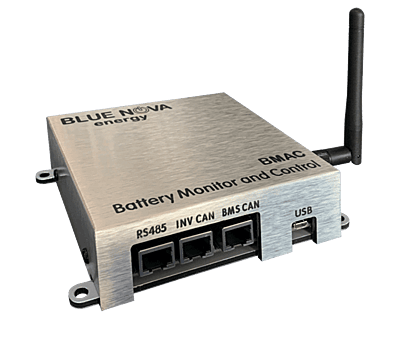

Our proprietary BMAC (Battery Monitor and Control) modules have been developed to provide extended supportive functionalities in systems containing one or more BMAC-compatible BlueNova batteries. The latest standard version BMAC pictured above is rated for integration in up to 48VDC architectures, to either establish or improve existing functionalities.
Benefits
BlueNova’s BMAC (Battery Monitor and Control) module is an electronic device that can be installed with most BlueNova batteries and compatible inverters / relevant peripheral devices to enable or improve upon existing serial (CAN) communication functionality.
BMAC modules can also be configured to transmit serial data to allow for the remote monitoring of system performance & health variables via the BlueNova Live Monitoring Web Platform. This requires an internet-connected Wi-Fi access point to be present and within range of the module.

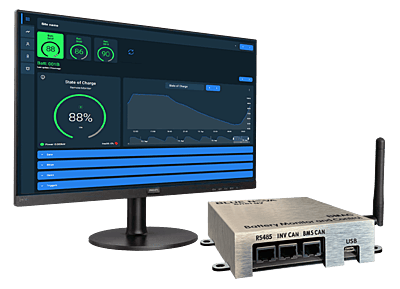

BMAC LIVE MONITORING PLATFORM
Real-time remote monitoring is one of the key features enabled with the inclusion of BMAC modules in compatible systems. On-site requirements include an internet-connected Wifi access point within range of the installation & completion of the relevant setup procedures. Performance & health variables of BlueNova batteries and select peripherals (real-time as well as historical data) would then be accessible by logging in to the live web platform.
Benefits
• Provides 2 x isolated CAN channels and 1 x RS485 channel per device.
• Translates CAN communication to RS485 and vice versa.
• Allows BlueNova batteries with serial communication functionality to be monitored remotely (internet-connected WiFi hotspot within range required on site).
• Logs performance data historically & enables for the provision of improved technical support.
• BMAC units are sold once-off. Monthly/recurring fees do not apply.
• BMAC firmware can be updated remotely (internet-connected WiFi hotspot within range required on site).
